Custom Molded Mask 2

A unique multi-plug anodizing custom mask that saved time and money

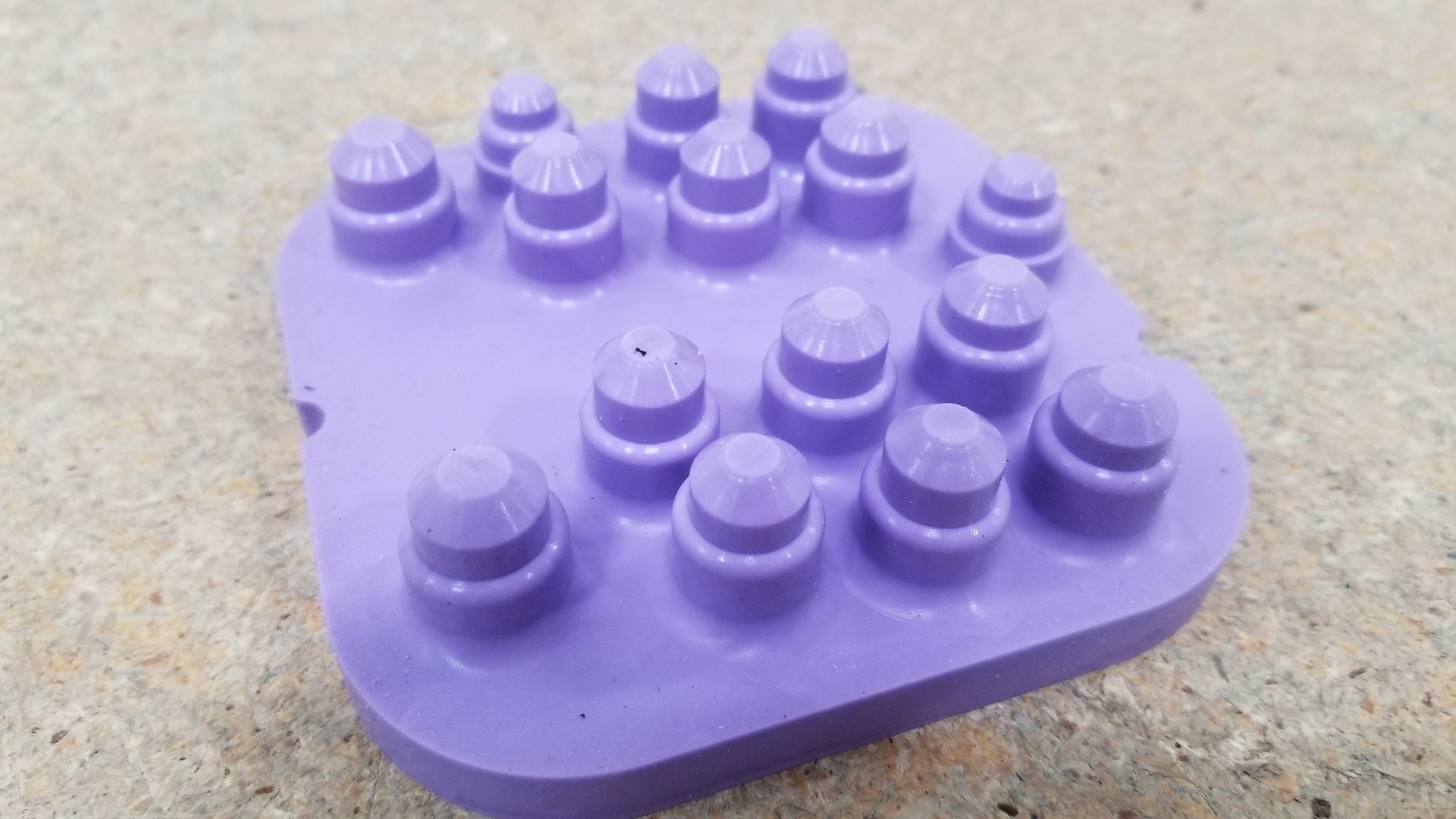

Imagine, if you will, an automotive part requiring 15 total plugs of 5 very-slightly-different sizes that look the same at first glance... all needing to be placed in the same 4" by 4" area. Sounds like a nightmare, right? It was!

And then Viadon got involved with a unique solution that streamlined the process and vastly reduced the required labor time.

When Viadon first received information about this process, other engineers had proposed multiple, separate plugs to mask the 15 different holes in the brake part a major auto company was developing for a new line of their trucks. We looked at it and asked, "Wouldn't it be easier to put all the plugs on one part, then press them all into place?"

The customer agreed this was a worthwhile option to pursue, so we did. After a bit of trial and error (due to the end customer changing requirements) the final masking "pad" of multi-plugs was achieved. And the mask did exactly what it needed to do during the anodizing process, masking all 15 holes repeatedly, allowing for plug application and removal in a fraction of the time multiple, separate plugs would have required.

Viadon made the part with three locator pin cut-outs, and provided the mask over time in different colors, so the customer could use the masks for a specified period and then switch to a new color to ensure consistency of results.

Have a unique challenge for a masking requirement? Ask Viadon - we look at projects with a bit different perspective that saves time and money for our customers.
