Viadon
VS22-100

Image 1 of 3

In Stock

VS22-100

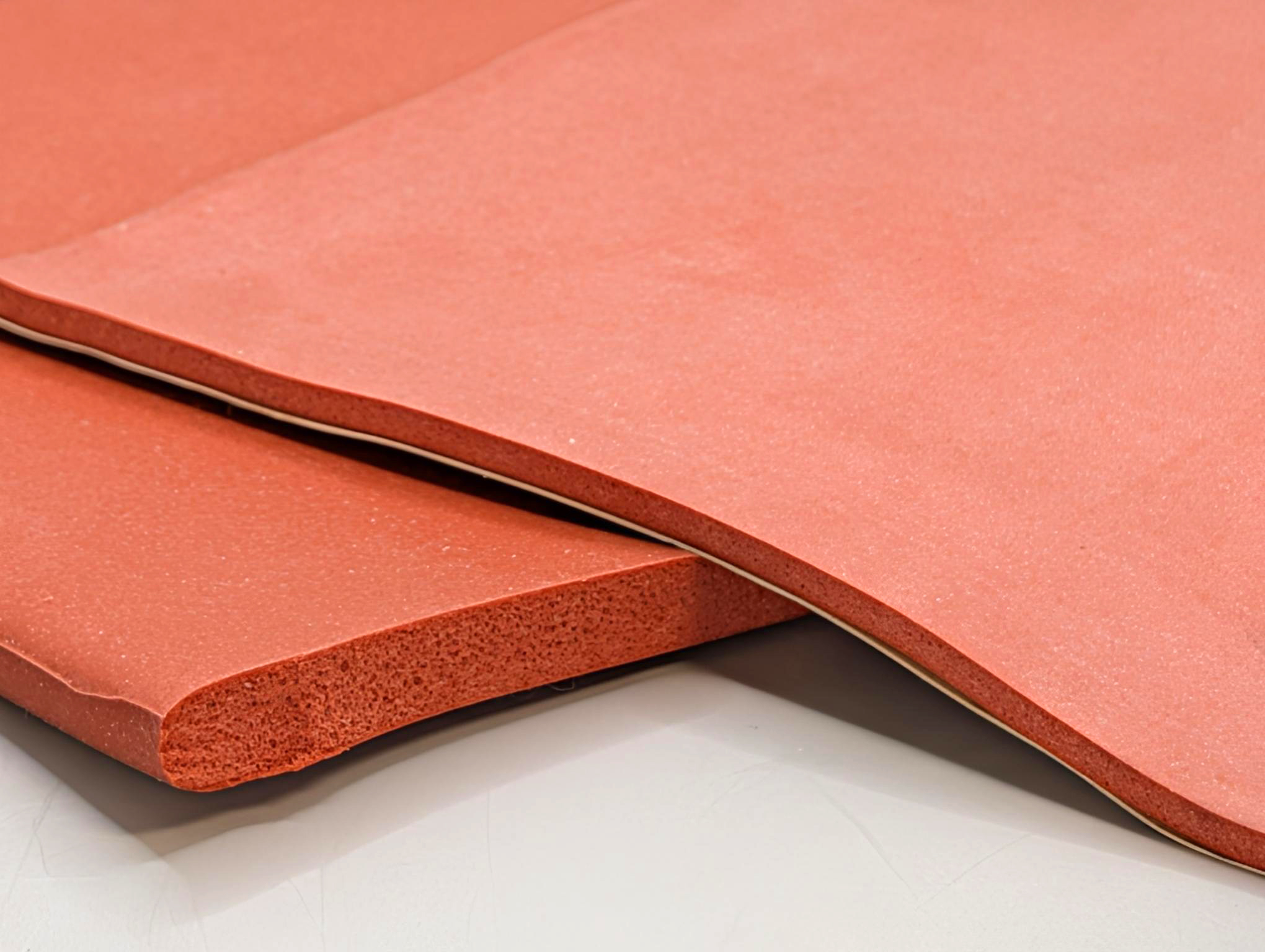

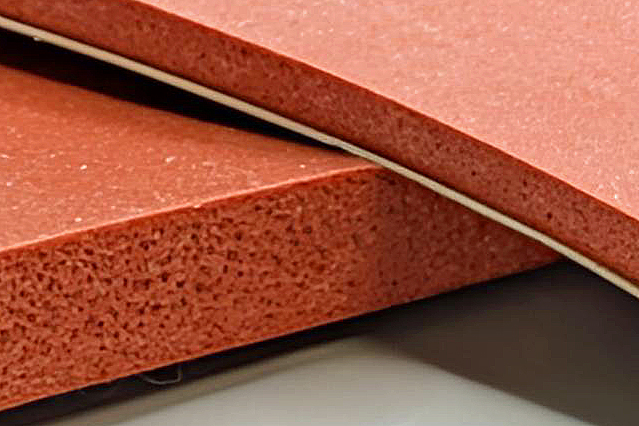

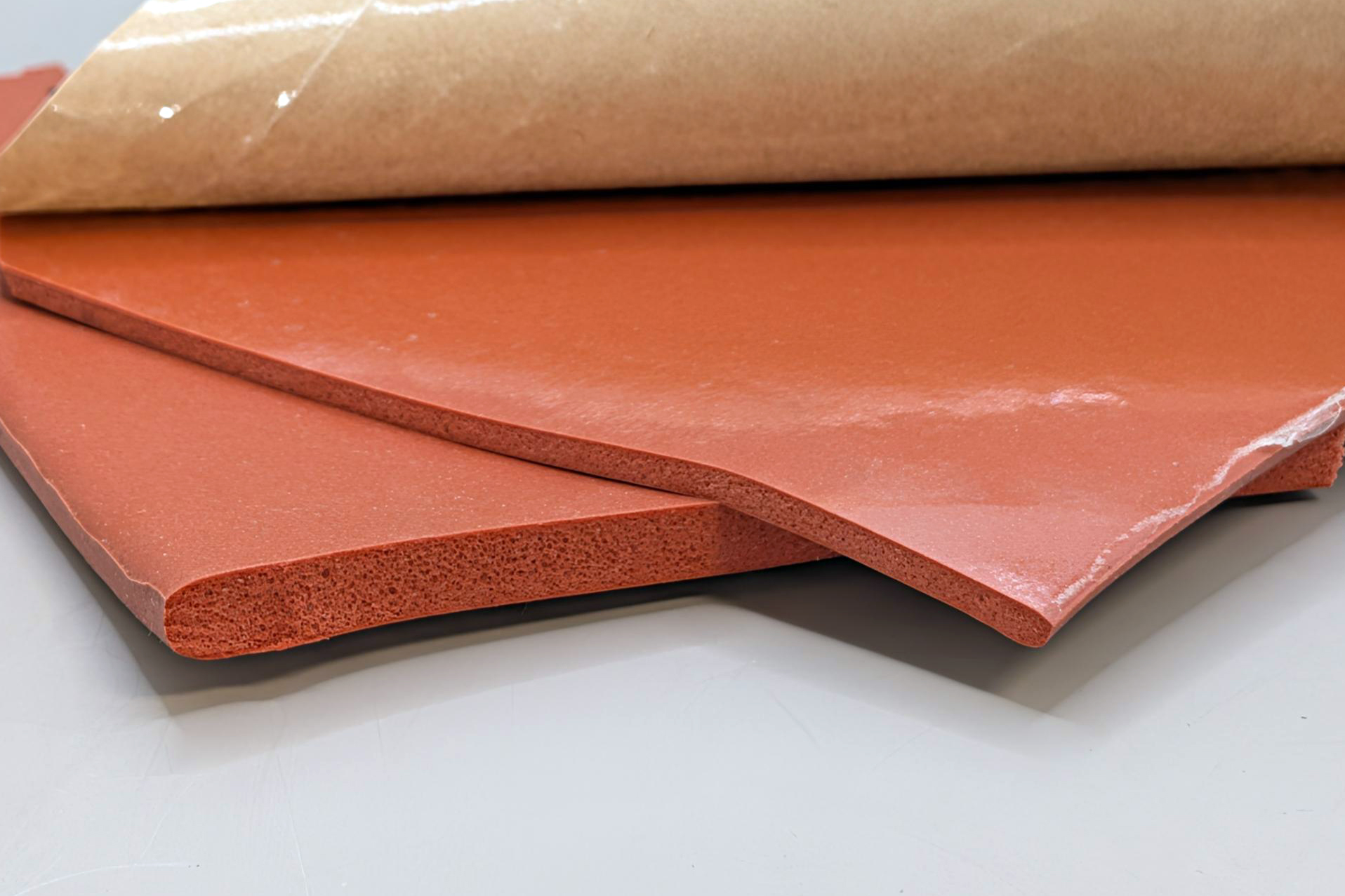

Closed cell, smooth, medium density silicone sponge

Closed cell, smooth surface silicone sponge is available in medium density. It is a high performance gasketing material designed for applications that require an excellent compression set resistance and a wide operating temperature range. The tight and uniform cell structure prevents water absorption per ASTM D1056 of less than 3%. The smooth surface finish improves sealing capabilities by providing up to 100% surface contact and promotes improved PSA adhesion. Closed cell silicone sponge is formulated per AMS3195, ASTM D6576.

Technical Specifications

Physical Properties

MaterialMedium Density Silicone Sponge Rubber
FinishSmooth
AdhesiveSilicone or Acrylic (optional)
Total Thickness0.063, 0.094, 0.125, 0.188, 0.250, 0.375, 0.0500
ColorsRed, Grey, Black (not all thicknesses available in all colors)

Performance

Temperature Range-103°F (-74°C) / +450°F (+232°C) or 500°F intermittent
Density20 PCF
Compression Deflection @25%7 psi
Compression Set (50%, 22 hrs @ 212°F25%
Tensile Strength125 psi
Elongation200%
Water Absorption<3%

Application Tips

Apply Pressure
Push down firmly — pressure-sensitive adhesive requires pressure.
Custom Solutions

Don't see what you need?

Please contact our experienced staff for assistance. We respond promptly to emails and phone calls.

Contact Us
