Available Sizes (3 options)
Popular Sizes

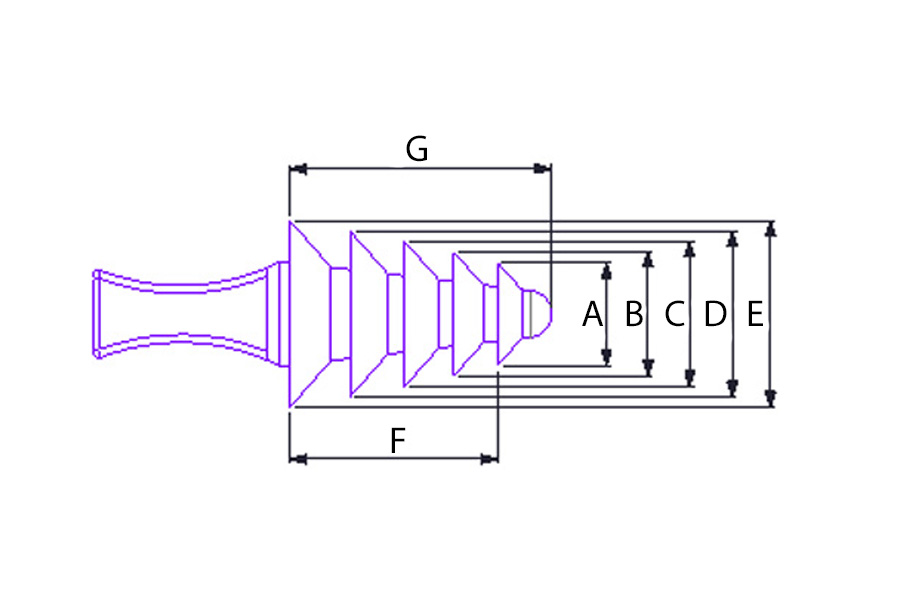

| Part # | Color | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F Length (in.) | G Length (in.) | Qty/Bag | Price/Bag | Add to Shopping List |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VMFP-157-349 | Blue | 0.157 | 0.236 | 0.315 | 0.394 | N/A | 0.419 | 0.535 | 500 | $52.30 | |
| VMFP-315-630 | Orange | 0.315 | 0.394 | 0.472 | 0.551 | 0.630 | 0.750 | 0.925 | 200 | $53.34 | |
| VMFP-394-709 | Green | 0.394 | 0.472 | 0.551 | 0.630 | 0.709 | 0.750 | 0.945 | 200 | $81.58 |
Technical Specifications
Properties
MaterialSilicone
Temperature RatingUp to 600°F / 315°C
Hole Range0.109" to 0.709" with 3 sizes
ReusableYes
Resistance CharacteristicsRubber Material Guide
Custom Solutions
Need a custom plug or cap?
We provide custom masking for powder coating, anodizing, plating and more.
- EPDM, silicone, FKM, Neoprene & other materials available
- Capable of handling small & large quantities
- Single cavity tooling for prototypes or small quantities
- Multi-cavity production tooling for large quantities
- Design Engineer on staff to assist with custom masking needs
