Standard Sizes (10 options)
Popular Sizes
| Part # | Color | Bottom (in.) | Top (in.) | Length (in.) | Qty/Bag | Price/Bag | Add to Shopping List |
|---|---|---|---|---|---|---|---|
| STP99-H | Clear | 0.031 | 0.125 | 0.625 | 1000 | $29.17 | |
| STP100-H | Lt Green | 0.062 | 0.125 | 0.625 | 1000 | $30.68 | |
| STP101-H | Pink | 0.062 | 0.187 | 0.625 | 1000 | $33.52 | |
| STP102-H | Orange | 0.125 | 0.250 | 0.750 | 1000 | $40.84 | |
| STP103-H | Red | 0.187 | 0.343 | 0.625 | 500 | $32.05 | |
| STP104-H | Yellow | 0.250 | 0.375 | 0.750 | 250 | $24.40 | |
| STP105-H | White | 0.250 | 0.375 | 0.500 | 500 | $33.93 | |
| STP000-H | Clear | 0.344 | 0.469 | 0.812 | 100 | $16.62 | |
| STP00-H | Dk Green | 0.406 | 0.594 | 1.000 | 100 | $26.61 | |
| STP0-H | Clear | 0.500 | 0.656 | 1.750 | 100 | $33.78 |
Technical Specifications
Properties
Application Tips
Sizing Guide

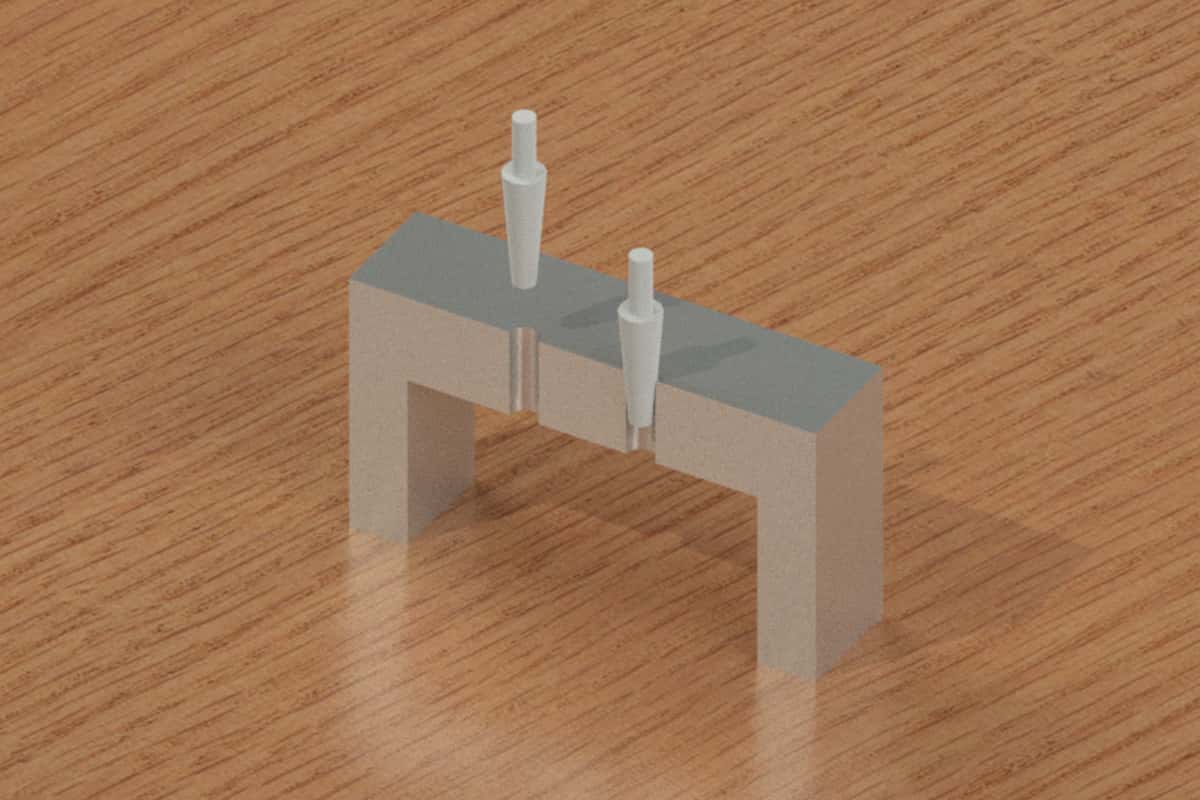

Insertion Technique
Sizing Guide
When trying to find the best plug for a given hole size, use these general guidelines: Bottom diameter should be 15% smaller than hole diameter; top diameter should be 15% larger than hole diameter.
Insertion Technique
Add a slight twisting motion when inserting to achieve higher friction and better hold, especially in deeper holes.
Need a custom plug or cap?
We provide custom masking for powder coating, anodizing, plating and more.
- EPDM, silicone, FKM, Neoprene & other materials available
- Capable of handling small & large quantities
- Single cavity tooling for prototypes or small quantities
- Multi-cavity production tooling for large quantities
- Design Engineer on staff to assist with custom masking needs
