Available Sizes (12 options)
Popular Sizes

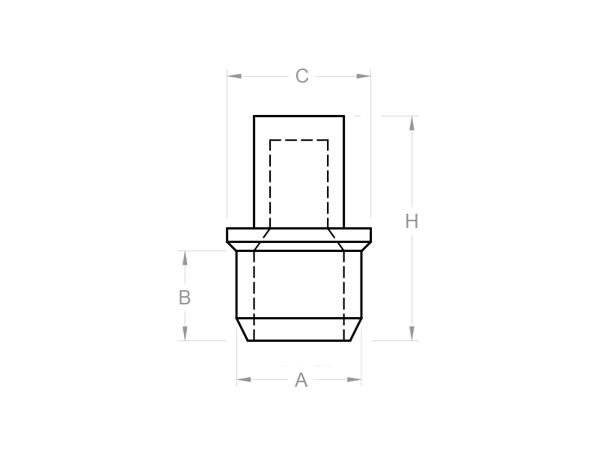

| Part # | Color | Use On | A dim (in.) | B dim (in.) | C dim (in.) | H dim (in.) | Qty/Bag | Price/Bag | Add to Shopping List |
|---|---|---|---|---|---|---|---|---|---|
| VTMP-0107 | Clear | 6-32 | 0.107 | 0.210 | 0.138 | 0.820 | 1000 | $32.00 | |
| VTMP-0141 | Pink | M4 | 0.141 | 0.230 | 0.161 | 0.860 | 1000 | $32.54 | |
| VTMP-0178 | Purple | M5 | 0.178 | 0.220 | 0.207 | 0.820 | 1000 | $33.70 | |
| VTMP-0208 | Clear | M6 | 0.208 | 0.295 | 0.248 | 0.964 | 500 | $26.08 | |
| VTMP-0218 | Yellow | 1/4-20 | 0.218 | 0.200 | 0.260 | 0.450 | 500 | $24.10 | |
| VTMP-0278 | Lt Green | 5/16-18 | 0.278 | 0.200 | 0.320 | 0.500 | 500 | $35.82 | |
| VTMP-0283 | Dk Blue | M8-1.25 | 0.283 | 0.200 | 0.335 | 0.586 | 500 | $36.00 | |
| VTMP-0336 | White | 3/8-16 | 0.336 | 0.250 | 0.385 | 0.600 | 500 | $33.55 | |
| VTMP-0358 | Clear | M10 | 0.358 | 0.241 | 0.409 | 0.615 | 250 | $18.22 | |
| VTMP-0451 | Clear | 1/2-13 | 0.451 | 0.352 | 0.510 | 0.750 | 250 | $47.88 | |
| VTMP-0724 | Yellow | M20 | 0.724 | 0.512 | 0.811 | 1.127 | 100 | $42.00 | |
| VTMP-0840 | Clear | M24 | 0.840 | 0.535 | 0.941 | 1.302 | 100 | $60.00 |
Technical Specifications
Properties
Application Tips
Installation
Sizing
Installation

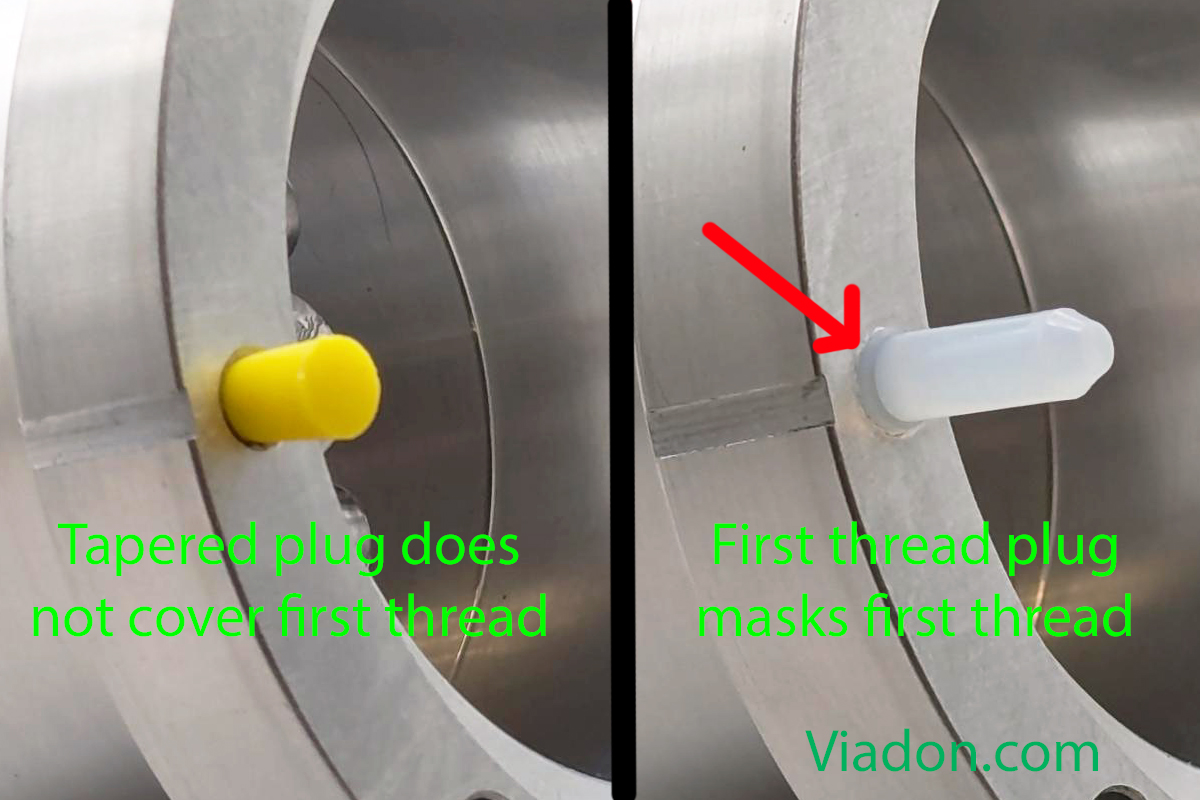

Insert fully with upper flange seated on first thread. Twist slightly to fully seat plug flange on first threads.
Sizing
Diameter should be slightly larger (often 2% to 4% or ~0.020" for larger plugs) than distance across ID thread points for optimal fit.
Need a custom plug or cap?
We provide custom masking for powder coating, anodizing, plating and more.
- EPDM, silicone, FKM, Neoprene & other materials available
- Capable of handling small & large quantities
- Single cavity tooling for prototypes or small quantities
- Multi-cavity production tooling for large quantities
- Design Engineer on staff to assist with custom masking needs
