Available Sizes (13 options)
Popular Sizes

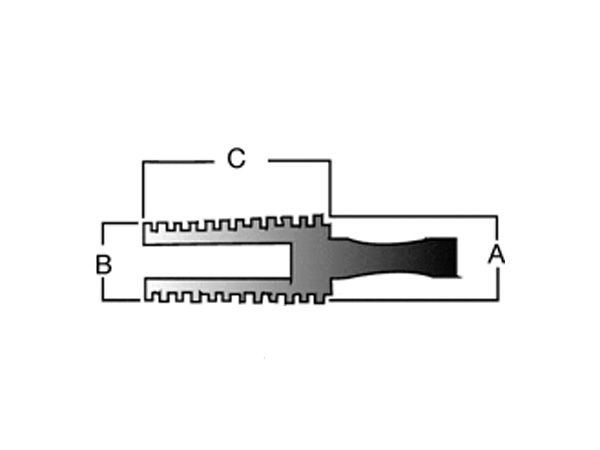

| Part # | Color | A-top (in.) | B-bottom (in.) | C Length (in.) | Qty/Bag | Price/Bag | Add to Shopping List |
|---|---|---|---|---|---|---|---|
| SFP00250 | Clear | 0.236 | 0.157 | 1.0 | 250 | $45.94 | |
| SFP00312 | Grey | 0.315 | 0.236 | 1.0 | 250 | $54.62 | |
| SFP00406 | Rusty Red | 0.406 | 0.315 | 1.0 | 250 | $63.91 | |
| SFP00468 | Blue | 0.468 | 0.394 | 1.0 | 250 | $76.23 | |
| SFP00562 | Clear | 0.551 | 0.472 | 1.0 | 250 | $81.92 | |
| SFP00625 | Grey | 0.630 | 0.536 | 1.0 | 250 | $104.58 | |
| SFP00718 | Rusty Red | 0.709 | 0.630 | 1.0 | 250 | $119.92 | |
| SFP00787 | Blue | 0.787 | 0.709 | 1.0 | 100 | $57.52 | |
| SFP00866 | Clear | 0.886 | 0.787 | 1.0 | 100 | $69.26 | |
| SFP00945 | Grey | 0.945 | 0.886 | 1.0 | 100 | $73.27 | |
| SFP01024 | Rusty Red | 1.024 | 0.945 | 1.0 | 100 | $93.26 | |
| SFP01102 | Blue | 1.102 | 1.024 | 1.0 | 100 | $107.92 | |
| SFP01250 | Clear | 1.250 | 1.125 | 1.0 | 100 | $137.28 |
Technical Specifications
Properties
Application Tips
Threaded Holes
Unthreaded holes
Trimming
Threaded Holes
Can be twisted into blind, threaded holes tightly with the ribs holding the plug more securely.
Unthreaded holes

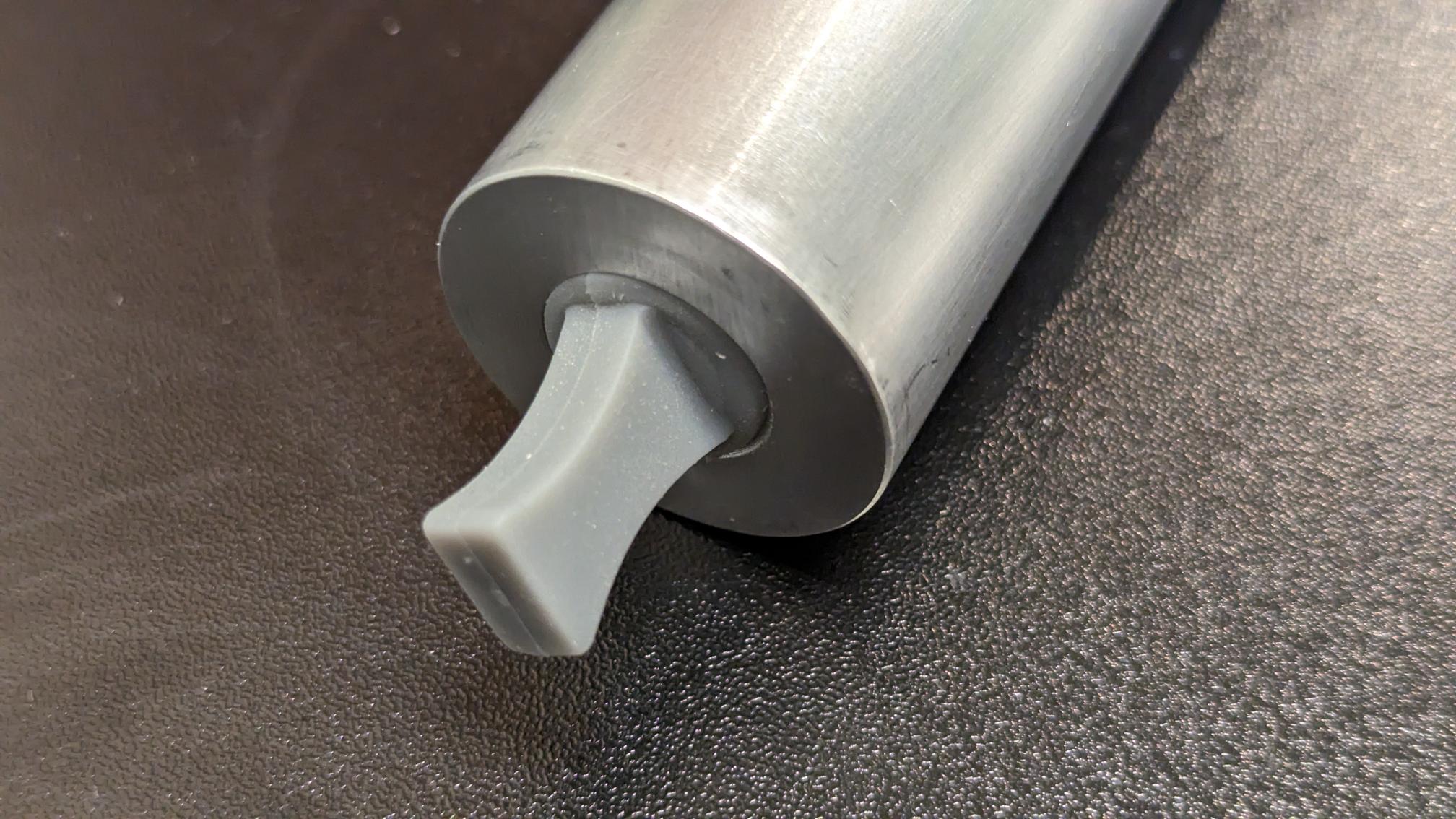

Flangeless plugs can be used for blind and straight-walled holes as well; use the handle to firmly twist the plugs into place.
Trimming
Plugs can be cut to a shorter length if they bottom out before engaging properly. The handle makes it well-suited for fast insertion/ removal situations.
Need a custom plug or cap?
We provide custom masking for powder coating, anodizing, plating and more.
- EPDM, silicone, FKM, Neoprene & other materials available
- Capable of handling small & large quantities
- Single cavity tooling for prototypes or small quantities
- Multi-cavity production tooling for large quantities
- Design Engineer on staff to assist with custom masking needs
